use:

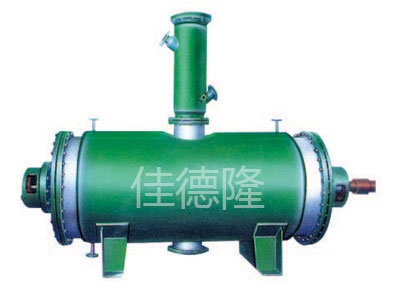

XPG type internal heating cylinder stirring vacuum dryer is suitable for drying materials in chemical, pharmaceutical, food and other industries. It is especially suitable for drying paste materials that are not resistant to high temperature, flammable, and easy to oxidize at high temperature. It is widely used in organic semi-finished products and dye manufacturing industries.

Structure and characteristics:

Using steam or heat transfer oil or hot water jacket to indirectly heat the material and dehumidify in a vacuum state, so it is especially suitable for the drying of materials that are resistant to high temperature and high temperature and easy to oxidize, as well as those that are easy to generate dust and the volume needs to be recovered during the drying process. The material is dry.

Compact structure, simple operation, stable and reliable performance, long maintenance cycle, long-term production practice has proved that powder, powder, paste, and even solutions can be dried under appropriate conditions at high temperature and low temperature.

The machine adopts the simultaneous heating method of interlayer and internal stirring, with large heat transfer surface and high thermal efficiency.

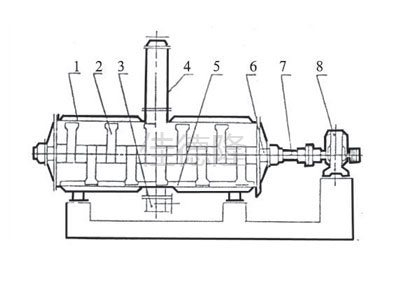

Structure: The main components of the vacuum rake dryer	1. Housing 2. Harrow teeth 3. Discharge device 4. Feeding device 5. Crushing rod 6. Sealing device 7. Stirring shaft 8. Transmission device

Model and technical characteristics
